Chapter 11 System Architecture & Infrastructure at Scale

Training LLMs with reinforcement learning from human feedback is as much a systems engineering challenge as it is an algorithmic one. Unlike standard supervised fine-tuning—which involves a single model, a single forward-backward pass, and well-understood scaling—RLHF requires multiple models (policy, reference, reward model, value head) to be loaded simultaneously, coordinated through a complex rollout-scoring-training loop, and distributed across dozens to hundreds of GPUs. This chapter covers the systems-level details that make large-scale RLHF training possible: memory budgeting, parallelism strategies (Data, Tensor, Pipeline, Sequence, and their combinations), the generation bottleneck, decoupled architectures, weight synchronization, fault tolerance, and production monitoring.

The 4-Model Memory Challenge

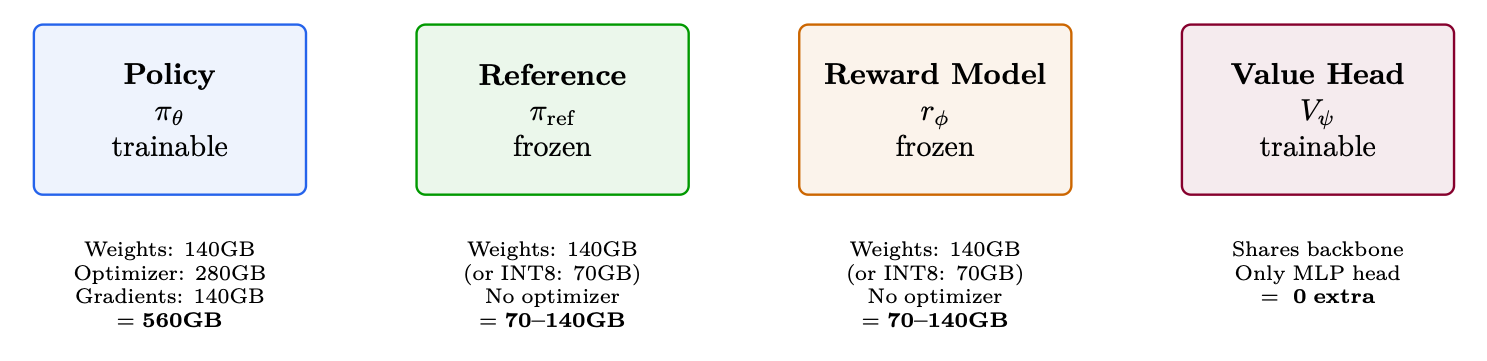

Figure 11.1: 70B PPO memory budget: the four models required for RLHF and their memory footprints. Total: 1470–1560GB. M — Figure 11.1:70B PPO memory budget: the four models required for RLHF and their memory footprints. Total: 1470–1560GB. Minimum 19–20 A100-80GB (naive). With ZeRO-3: fits in 8 nodes.

Parallelism Strategies in Detail

Training large language models requires distributing computation across many GPUs. There are fundamentally different axes along which to parallelize, each with distinct trade-offs. This section provides detailed coverage of each strategy with mathematical formulations, diagrams, and practical guidance.

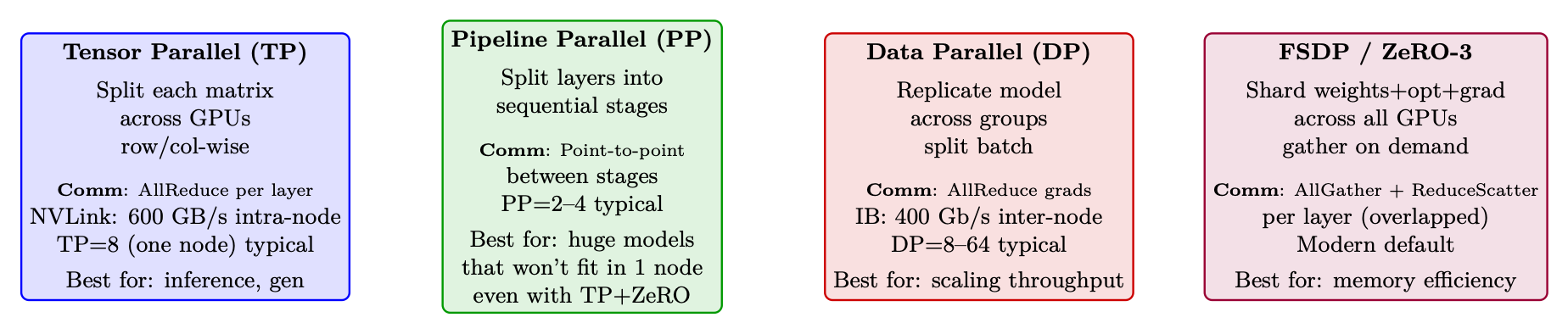

Figure 11.2: Overview of the four parallelism strategies. Production systems typically combine 2–3 of these simultaneous — Figure 11.2:Overview of the four parallelism strategies. Production systems typically combine 2–3 of these simultaneously.

Data Parallelism (DP) and Distributed Data Parallelism (DDP)

Data Parallelism is the simplest and most common form of distributed training [210]. Each GPU holds a complete copy of the model, processes a different mini-batch, and synchronizes gradients.

A single-process approach where one “master” GPU scatters input, gathers outputs, and broadcasts gradients. Limited by GIL and PCIe bandwidth to the master GPU.

Multi-process: each GPU runs its own process. Gradients are synchronized via ring-AllReduce [321] in the background while backward computation continues.

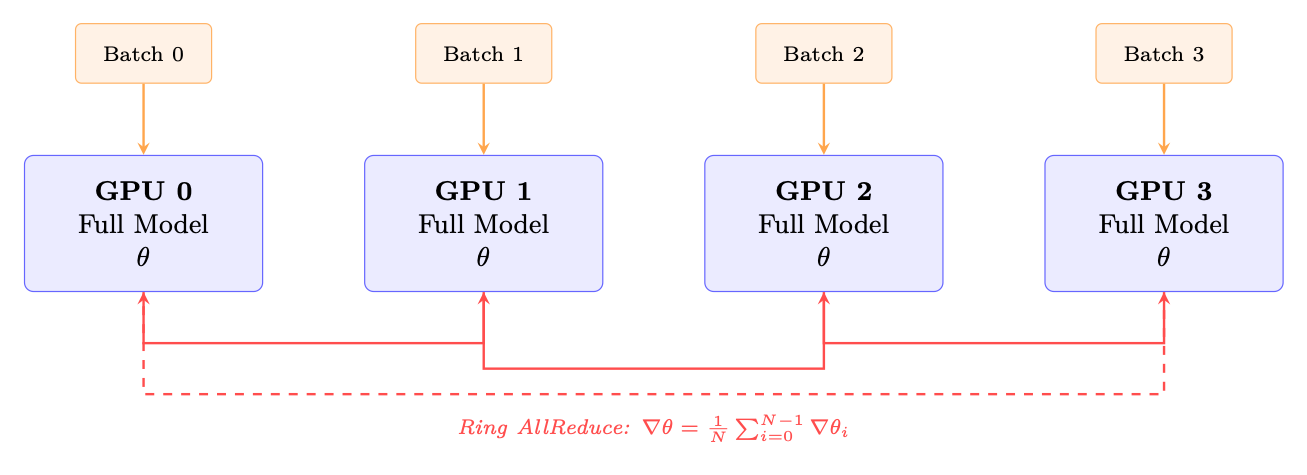

Figure 11.3: DDP: each GPU holds a full model replica and processes a different batch. Gradients are averaged via ring A — Figure 11.3:DDP: each GPU holds a full model replica and processes a different batch. Gradients are averaged via ring AllReduce, overlapped with backward computation.

Key properties of DDP:

Memory: Each GPU stores full model + optimizer + gradients. For 70B BF16: $\sim$ 560 GB/GPU—impossible without memory optimizations.
Communication: One AllReduce of gradient tensor per step. Size = model parameters $\times$ 2 bytes (BF16). Ring AllReduce cost: $2\cdot\frac{N-1}{N}\cdot M$ bytes transferred per GPU.
Scaling: Near-linear up to $\sim$ 64 GPUs. Beyond that, communication starts to dominate.
Gradient bucketing: DDP groups parameters into buckets (default 25 MB) and starts AllReduce as soon as a bucket’s gradients are ready—overlapping communication with backward computation.

import torch.distributed as dist
from torch.nn.parallel import DistributedDataParallel as DDP

dist.init_process_group(backend="nccl")  # NCCL for GPU communication
model = model.to(local_rank)
model = DDP(model, device_ids=[local_rank],
            gradient_as_bucket_view=True,    # Memory optimization
            static_graph=True)               # Enable comm optimizations

Tensor Parallelism (TP)

Tensor Parallelism (Megatron-LM style [327]) splits individual weight matrices across GPUs. Each GPU computes a partial result, and an AllReduce combines them.

The weight matrix $W\in\mathbb{R}^{d\times h}$ is split column-wise across $T$ GPUs:

W=[W_{0}\;|\;W_{1}\;|\;\cdots\;|\;W_{T-1}],\quad W_{i}\in\mathbb{R}^{d\times h/T}

(11.1)

Each GPU $i$ computes $Y_{i}=XW_{i}$ independently (no communication). The output is split along the hidden dimension.

The weight matrix is split row-wise: $W=[W_{0};W_{1};\ldots;W_{T-1}]$ where $W_{i}\in\mathbb{R}^{d/T\times h}$ . Input $X$ must also be split. Each GPU computes a partial sum, then an AllReduce produces the final output.

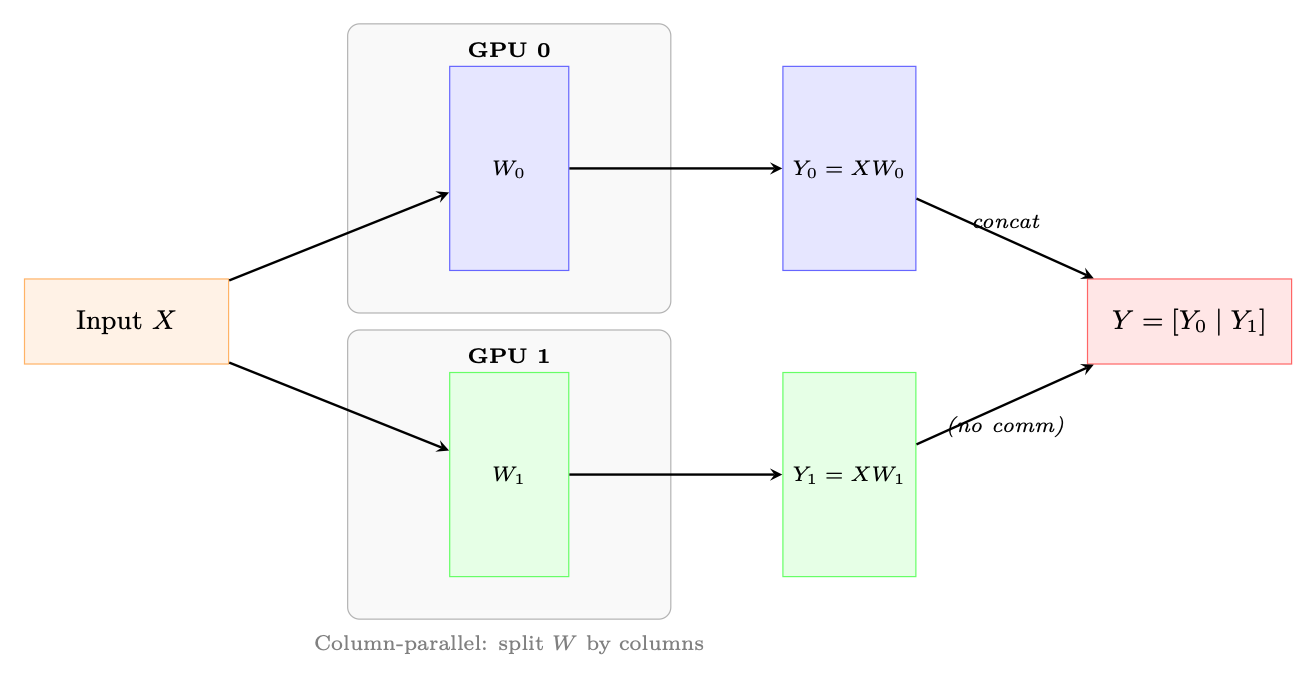

Figure 11.4: Column-parallel linear layer (TP=2). The weight is split column-wise; each GPU computes XWiXW_{i} independ — Figure 11.4:Column-parallel linear layer (TP=2). The weight is split column-wise; each GPU computes $XW_{i}$ independently. The MLP pairs this with a row-parallel layer to avoid redundant AllReduce.

In a Transformer layer, Megatron-LM applies TP as follows:

MLP: Column-parallel for the first linear ( $h\to 4h$ ), row-parallel for the second ( $4h\to h$ ). One AllReduce after the row-parallel layer.
Attention: $Q$ , $K$ , $V$ projections are column-parallel (split heads across GPUs). Output projection is row-parallel. One AllReduce after output projection.
Total: 2 AllReduce per transformer layer (one for attention, one for MLP).

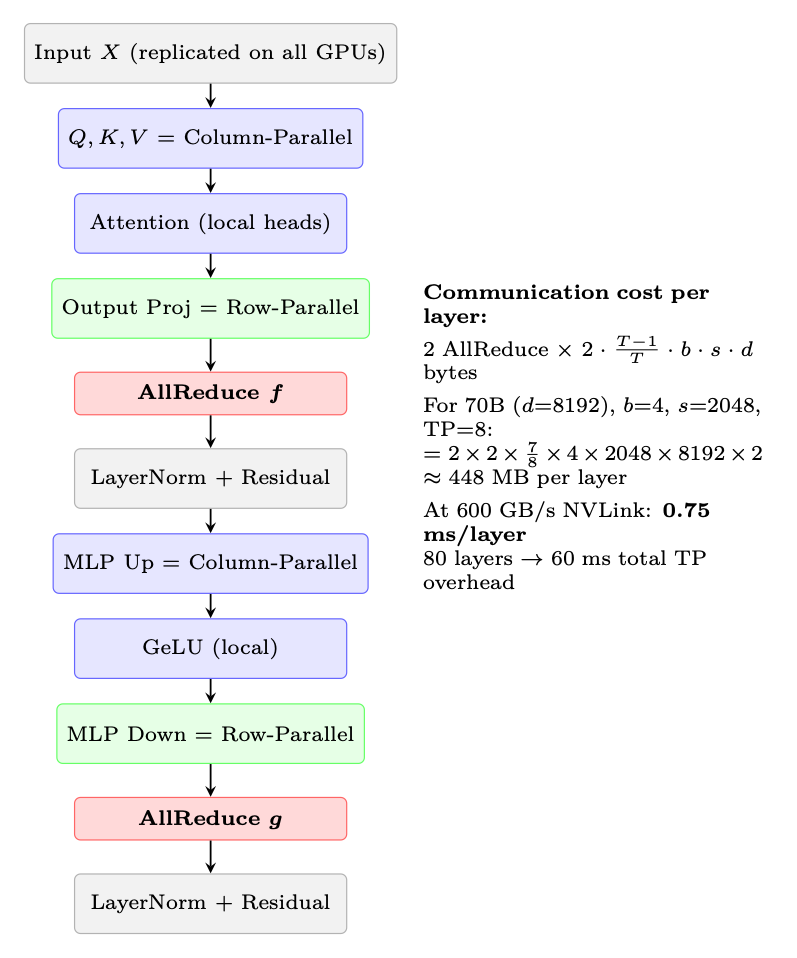

Figure 11.5: Tensor Parallel communication pattern in one Transformer block. Two AllReduce operations (marked in red) ar — Figure 11.5:Tensor Parallel communication pattern in one Transformer block. Two AllReduce operations (marked in red) are required per layer—one after attention, one after MLP.

Sequence Parallelism (SP)

Sequence Parallelism [191] addresses a memory bottleneck that Tensor Parallelism alone cannot solve: the activation memory in LayerNorm and Dropout layers.

With TP, weight memory is split across GPUs. But LayerNorm and Dropout operate on the full hidden dimension and are replicated on every GPU. Their activations (needed for backward pass) consume memory proportional to $b\times s\times d$ —the same on every GPU, unreduced by TP.

Split the sequence dimension for operations that don’t require cross-GPU communication (LayerNorm, Dropout, residual connections). Each GPU processes a $s/T$ slice of the sequence for these operations, then gathers the full sequence only where needed (attention, linear layers).

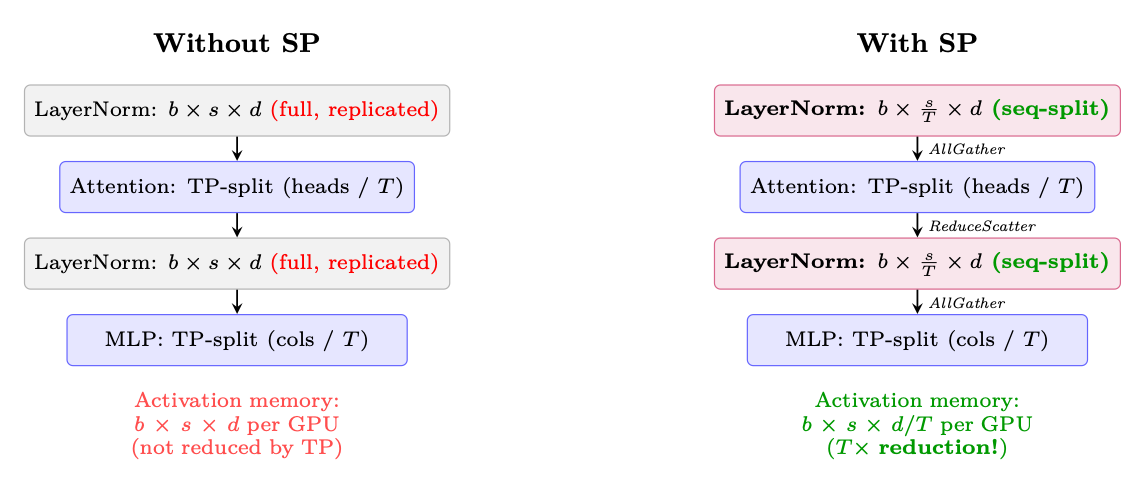

Figure 11.6: Sequence Parallelism reduces activation memory for LayerNorm/Dropout by splitting along the sequence dimens — Figure 11.6:Sequence Parallelism reduces activation memory for LayerNorm/Dropout by splitting along the sequence dimension. Communication (AllGather/ReduceScatter) replaces the AllReduce used in standard TP—same total bytes transferred, but memory is saved.

Memory savings from SP (70B model, TP=8, batch=4, seq=2048):

\text{Activation savings}=(T-1)\times b\times s\times d\times n_{\text{layers}}\times 2\text{ bytes}=7\times 4\times 2048\times 8192\times 80\times 2\approx\textbf{59 GB/GPU}

(11.2)

Pipeline Parallelism (PP)

Pipeline Parallelism splits the model vertically by layers, assigning consecutive groups of layers to different devices (stages). Activations flow forward through stages; gradients flow backward.

Naive pipeline execution creates “bubbles”—idle time while a stage waits for input from the previous stage or gradients from the next:

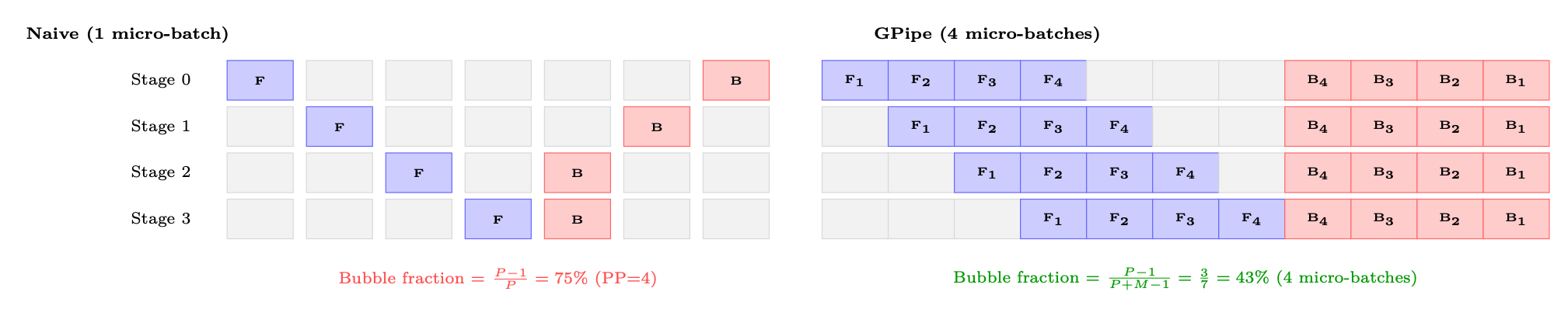

Figure 11.7: Pipeline bubble comparison. Left: naive pipeline with one micro-batch has 75% idle time. Right: GPipe with — Figure 11.7:Pipeline bubble comparison. Left: naive pipeline with one micro-batch has 75% idle time. Right: GPipe with $M=4$ micro-batches reduces bubbles significantly. With $M\gg P$ , bubble fraction approaches zero.

For $P$ pipeline stages and $M$ micro-batches per step:

\text{Bubble fraction}=\frac{P-1}{P+M-1}\approx\frac{P-1}{M}\quad\text{(when }M\gg P\text{)}

(11.3)

To keep bubble overhead $<$ 10%, you need $M\geq 10\cdot(P-1)$ . For PP=4: at least 30 micro-batches.

Schedule	Bubble	Memory	Characteristics
GPipe	$\frac{P-1}{M+P-1}$	$M\times$ activations	Simple; all-forward then all-backward [152]
1F1B	$\frac{P-1}{M+P-1}$	$P\times$ activations	Interleaved; steady-state memory bounded [263]
Interleaved 1F1B	$\frac{P-1}{M\cdot V+P-1}$	$P\times$ activations	Virtual stages ( $V$ ); further reduces bubble [264]
Zero-Bubble (ZB-H1)	$\approx 0$	$P\times$ activations	Splits backward into B and W phases [296]

Table 11.1:Pipeline scheduling strategies

Unlike TP (AllReduce), PP only requires point-to-point communication of activations between adjacent stages:

\text{Data per transfer}=b_{\text{micro}}\times s\times d\times 2\text{ bytes (BF16)}

(11.4)

For micro-batch=4, seq=2048, $d$ =8192: $4\times 2048\times 8192\times 2=128$ MB per transfer. At InfiniBand 50 GB/s: 2.6 ms per transfer—small relative to compute per stage.

Not all layers have equal compute:

Embedding layer: Very cheap (lookup table).
Transformer blocks: Uniform compute.
Final LM head: Moderate (large matrix multiply for vocabulary projection).

Assign more transformer layers to middle stages and fewer to the first/last stages to balance compute.

Fully Sharded Data Parallelism (FSDP / ZeRO-3)

FSDP [431] (PyTorch) and ZeRO-3 [304] (DeepSpeed) address the memory duplication inherent in DDP: instead of every GPU holding a full copy of parameters, gradients, and optimizer states, each GPU owns only a $1/N$ slice and reconstructs the full tensor on-the-fly when needed.

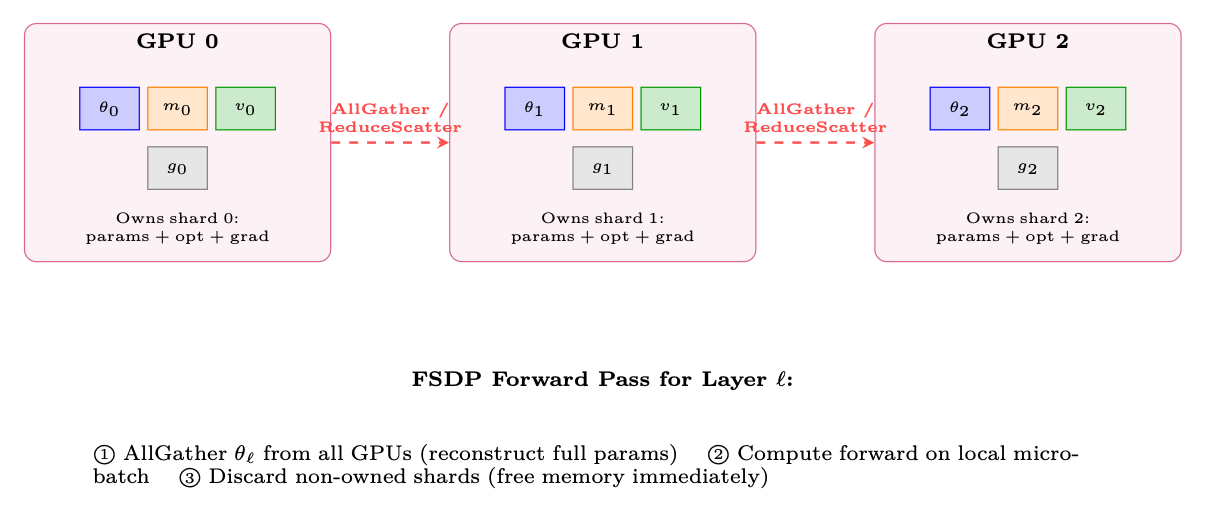

Figure 11.8: FSDP shards all model state across GPUs. Each GPU owns 1/N1/N of parameters, optimizer states, and gradient — Figure 11.8:FSDP shards all model state across GPUs. Each GPU owns $1/N$ of parameters, optimizer states, and gradients. Full parameters are reconstructed on-demand via AllGather before each layer’s computation.

FSDP execution flow per layer:

Forward: AllGather parameters $\rightarrow$ compute $\rightarrow$ discard non-owned shards.
Backward: AllGather parameters (again) $\rightarrow$ compute gradients $\rightarrow$ ReduceScatter gradients (each GPU gets its gradient shard) $\rightarrow$ discard non-owned parameter shards.
Optimizer step: Each GPU updates only its owned shard using its gradient shard and optimizer states.

Strategy	Sharded	Memory/GPU	Communication
DDP (no sharding)	Nothing	1120 GB $\times$	AllReduce (gradients only)
ZeRO-1	Optimizer states	385 GB $\times$	AllReduce (gradients)
ZeRO-2	Optimizer + gradients	368 GB $\times$	AllReduce (gradients)
ZeRO-3 / FSDP	Everything	140 GB ✓	AllGather + ReduceScatter (per layer)

Table 11.2:Memory comparison: DDP vs FSDP/ZeRO stages (70B model, 8 GPUs). Baseline: BF16 params (140 GB) + BF16 grads (140 GB) + FP32 master+m+v (840 GB) = 1120 GB per GPU.

from functools import partial
from torch.distributed.fsdp import FullyShardedDataParallel as FSDP
from torch.distributed.fsdp import ShardingStrategy, MixedPrecision, BackwardPrefetch
from torch.distributed.fsdp.wrap import transformer_auto_wrap_policy
from transformers.models.llama.modeling_llama import LlamaDecoderLayer

# Wrap model with FSDP
auto_wrap = partial(transformer_auto_wrap_policy,
                    transformer_layer_cls={LlamaDecoderLayer})
mp_policy = MixedPrecision(
    param_dtype=torch.bfloat16,
    reduce_dtype=torch.bfloat16,
    buffer_dtype=torch.bfloat16,
)

model = FSDP(
    model,
    sharding_strategy=ShardingStrategy.FULL_SHARD,  # ZeRO-3
    mixed_precision=mp_policy,
    auto_wrap_policy=auto_wrap,  # Wrap each transformer layer
    use_orig_params=True,        # Required for torch.compile compatibility
    limit_all_gathers=True,      # Bound peak memory (1 AllGather in flight at a time)
    forward_prefetch=True,       # Prefetch next layer's params during current layer
    backward_prefetch=BackwardPrefetch.BACKWARD_PRE,  # Prefetch during backward
)

3D Parallelism: Combining Strategies

Production systems at scale (70B+) combine TP, PP, and DP/FSDP simultaneously:

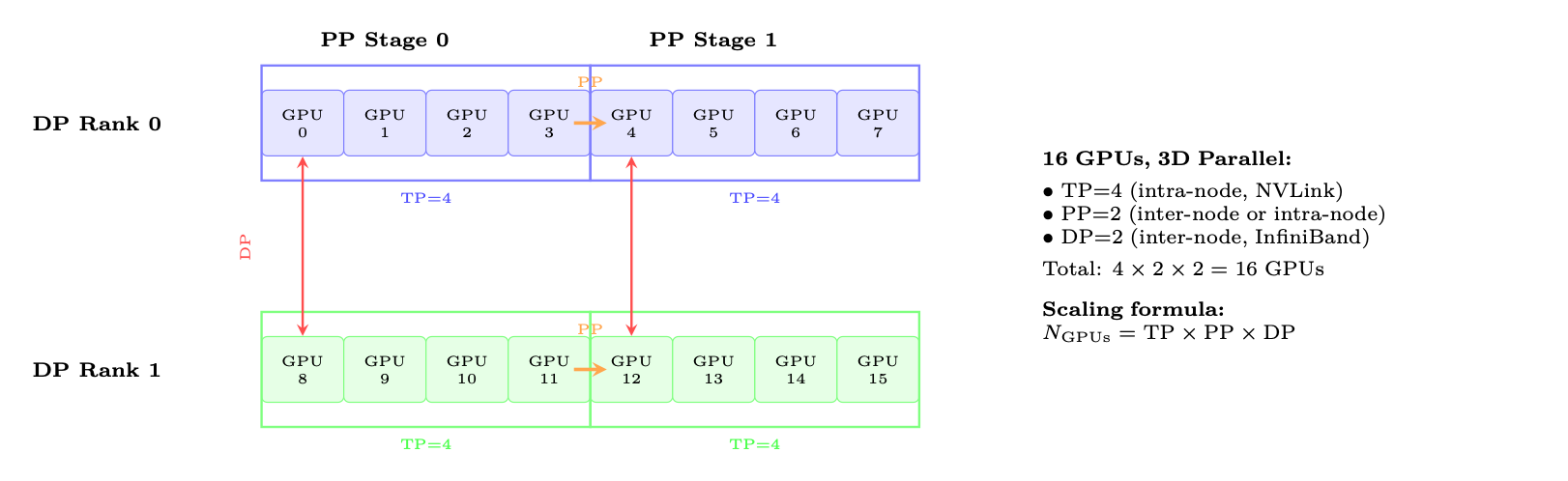

Figure 11.9: 3D parallelism layout for 16 GPUs: TP=4 (within each box, using NVLink), PP=2 (orange arrows, stages), DP=2 — Figure 11.9:3D parallelism layout for 16 GPUs: TP=4 (within each box, using NVLink), PP=2 (orange arrows, stages), DP=2 (red arrows, gradient sync). Each dimension exploits a different level of the communication hierarchy.

Strategy	Splits	Communication	Scaling Limit	Overhead	When to Use
DP/DDP	Batch	AllReduce (grads)	$\sim$ 64 GPUs	5–10%	Model fits on 1 GPU
FSDP	Params+Opt+Grad	AllGather+RS	100s of GPUs	10–20%	Default for $>$ 13B
TP	Weight matrices	AllReduce (2/layer)	8 GPUs (1 node)	12–18%	Large model inference+train
SP	Activations (seq)	Reuses TP comms	Same as TP	$\approx$ 0% extra	Always with TP
PP	Layers (stages)	Point-to-point	$\sim$ 16 stages	15–30%	100B+ models only

Table 11.3:Parallelism strategy comparison summary

Decoupled DiLoCo: Training Across Datacenters

Conventional distributed training assumes high-bandwidth interconnects—100+ Gbps InfiniBand within a single datacenter. This requirement makes it impossible to train across geographically distributed datacenters using standard internet links. Decoupled DiLoCo[113] (Google DeepMind, April 2026) breaks this assumption, enabling large-scale training across regions with commodity bandwidth.

Decoupled DiLoCo extends this by further decoupling the outer synchronization: workers do not need to synchronize simultaneously. Instead, updates are asynchronous across regions, with a coordinator applying outer updates as they arrive. This tolerates the variable latency of wide-area networks.

The Generation Bottleneck: Quantitative Analysis

Config	Batch	Time/batch	Tok/s/GPU	Notes
TP=1, batch=1	1	36s	14	Baseline, worst case
TP=4, batch=1	1	9s	57	Linear TP scaling for gen
TP=4, batch=32	32	15s	1092	Near-optimal batching
TP=4, batch=128, vLLM	128	45s	1456	Continuous batching
TP=4, batch=128, INT8	128	25s	2621	2 $\times$ bandwidth savings

Table 11.4:Generation throughput for 70B model (512 tokens, various configurations)

Optimization stack (cumulative speedup):

vLLM + PagedAttention[196] (2–4 $\times$ ): Eliminates KV cache fragmentation, enables larger batches
Continuous batching[412] (1.5–2 $\times$ ): Don’t wait for longest sequence; start new ones as others finish
Speculative decoding[206] (2–3 $\times$ ): Small draft model proposes 5 tokens, large model verifies in one forward pass. Accept 3–4 on average.
INT8/FP8 weights for gen (2 $\times$ ): Halve bandwidth needs. Quality loss is minimal since we’re sampling (not computing exact logits for training)
CUDA graphs (1.1–1.3 $\times$ ): Eliminate kernel launch overhead for fixed-shape operations
Prefix caching (1.5 $\times$ for shared-prefix prompts): Don’t recompute system prompt KV cache

# Production vLLM generation setup
from vllm import LLM, SamplingParams

engine = LLM(
    model="./policy_checkpoint",
    tensor_parallel_size=4,           # TP=4 per instance
    gpu_memory_utilization=0.92,      # Leave headroom for KV cache
    max_num_batched_tokens=16384,     # Max tokens in flight
    max_num_seqs=256,                 # Max concurrent sequences
    dtype="bfloat16",
    enable_prefix_caching=True,       # Cache system prompt KV
    speculative_model="./draft_1B",   # Speculative decoding
    num_speculative_tokens=5,
    block_size=16,                    # PagedAttention block size
    swap_space=4,                     # GB swap space for preemption
)

# Generate responses for RLHF batch
sampling_params = SamplingParams(
    temperature=0.7, top_p=0.9, max_tokens=512,
    logprobs=1,  # Need log-probs for PPO ratio calculation
)
outputs = engine.generate(prompts, sampling_params)
# Extract: responses, log_probs for each token (needed for PPO/GRPO)

Decoupled Architecture: Production Design

Production RLHF systems such as DeepSpeed-Chat [410] and OpenRLHF [148] use a decoupled architecture that separates generation, scoring, and training into independently scalable clusters.

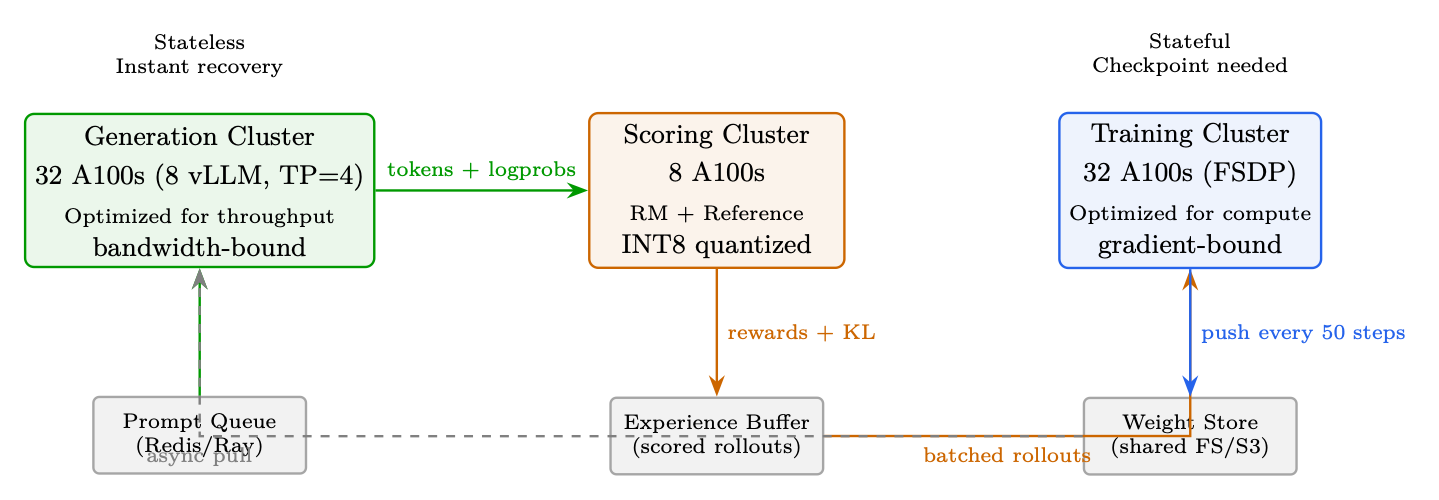

Figure 11.10: Decoupled RLHF architecture. Each cluster optimized for its workload. Scored rollouts accumulate in the ex — Figure 11.10:Decoupled RLHF architecture. Each cluster optimized for its workload. Scored rollouts accumulate in the experience buffer before being consumed by training.

Weight Synchronization Strategies

StrategyStalenessBandwidthQuality ImpactSynchronous (every step)0 steps140 GB/stepPerfect but too slowPeriodic (every 50 steps)25 avg2.8 GB/step amortized $<$ 2% quality lossDelta compression (INT8)25 avg0.4 GB/step $<$ 3% quality lossAsync streaming5–10 steps14 GB/step (background) $<$ 1% quality loss

Memory Optimization Techniques

ZeRO StageWhat Gets ShardedMemory/GPU (70B, 8 GPUs)None (Data Parallel)Nothing (full replica)560GB per GPU (impossible)ZeRO-1Optimizer states only175GBZeRO-2Optimizer states + Gradients105GBZeRO-3 (FSDP)Optimizer + Gradients + Parameters70GB (fits in A100-80GB!)

Additional techniques:

Gradient checkpointing[49]: Don’t store all activations; recompute during backward pass. Saves $\sim$ 60% activation memory, costs $\sim$ 33% extra compute. Selective: only checkpoint attention layers (memory-heavy), keep FFN activations (compute-heavy to recompute).
Mixed precision[255]: Forward in BF16 (2 bytes/param), optimizer states in FP32 (4 bytes each for m,v). Master weights in FP32 for accumulation.
CPU offloading (ZeRO-Infinity [305]): Move optimizer states to CPU RAM. 50% memory savings but 2–3 $\times$ slower (PCIe 64GB/s bottleneck).
Activation offloading: Move activations to CPU during forward, bring back for backward. Only when memory is truly critical.
Flash Attention[64, 65]: O( $n$ ) memory instead of O( $n^{2}$ ) for attention. 2–4 $\times$ faster + massive memory savings for long sequences.

Flash Attention’s Impact on RLHF

# DeepSpeed ZeRO-3 configuration for 70B RLHF training
ds_config = {
    "bf16": {"enabled": True},
    "zero_optimization": {
        "stage": 3,
        "overlap_comm": True,                    # Overlap communication with compute
        "contiguous_gradients": True,            # Better memory layout
        "reduce_scatter": True,                  # More efficient than allreduce
        "reduce_bucket_size": 5e7,               # 50M params per bucket
        "prefetch_bucket_size": 5e7,             # Prefetch next bucket
        "param_persistence_threshold": 1e5,      # Keep small params on all GPUs
        "offload_optimizer": {"device": "cpu", "pin_memory": True},  # CPU offload
        "sub_group_size": 1e9,                   # Reduce fragmentation
    },
    "gradient_accumulation_steps": 4,
    "gradient_clipping": 1.0,
    "train_micro_batch_size_per_gpu": 2,
    "wall_clock_breakdown": True,
}

Fault Tolerance at Scale

Production fault tolerance stack:

Detection: NCCL timeout (60s), GPU heartbeat (10s), NVML health monitoring, ECC error counting.
Checkpointing: Async every 50–100 steps. Non-blocking (background thread). Save: model weights, optimizer states (Adam m/v), scheduler state, RNG states, KL coefficient, replay buffer. Keep last 3 checkpoints. Time: $\sim$ 30s for 70B (parallel write to NVMe).
Recovery: (a) Generation cluster = stateless, just restart and load latest weights. (b) Training cluster: load checkpoint, rebuild NCCL process group excluding failed node, redistribute FSDP shards, resume from last checkpoint.
Elastic training: Torch Elastic / Kubernetes auto-scaling. Replace failed node within minutes. Training continues with $N-1$ GPUs temporarily.
Prevention: GPU health pre-screening (run GEMM stress test before starting). Hot spares on standby. Redundant network paths (dual-rail InfiniBand).

End-to-End Latency Breakdown

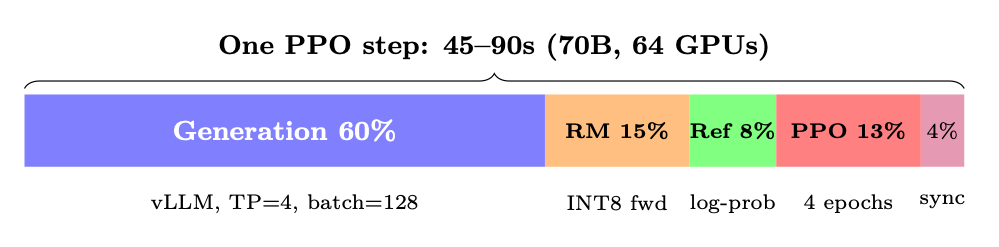

Figure 11.11: Without overlap (monolithic). With decoupled: gen overlaps with training, effective 1.4×\times speedup. — Figure 11.11:Without overlap (monolithic). With decoupled: gen overlaps with training, effective 1.4 $\times$ speedup.

PhaseTime (70B)Bound ByOptimizationGeneration (128 $\times$ 512 tok)30–45sMemory bandwidthvLLM, spec decoding, INT8Reward scoring5–8sCompute (batch forward)INT8 RM, batch=128Reference log-probs4–6sCompute (batch forward)INT8 ref, or LoRA (free)PPO update (4 epochs)8–12sCompute (backprop)FSDP, Flash AttentionWeight sync0–3sNetwork (async)Delta compression, asyncTotal (monolithic)50–75sTotal (decoupled, overlapped)35–50sGen overlaps with prev training

Monitoring and Observability

Network Topology and Communication Patterns

Efficient distributed training requires understanding the hierarchical communication fabric that connects GPUs. Modern clusters use a two-tier architecture: ultra-fast intra-node links and slower but scalable inter-node networks.

Intra-Node: NVLink and NVSwitch

Generation	BW per link	Links/GPU	Total BW	Platform
NVLink 3.0	50 GB/s	12	600 GB/s	A100 (DGX A100)
NVLink 4.0	50 GB/s	18	900 GB/s	H100 (DGX H100)
NVLink 5.0	100 GB/s	18	1800 GB/s	B200 (DGX B200)

Table 11.5:NVLink generations and their impact on LLM training

Within a single node (typically 8 GPUs), NVSwitch provides full-bisection bandwidth between all GPU pairs. This means any GPU can communicate with any other at full NVLink speed simultaneously—critical for Tensor Parallelism where every layer requires an AllReduce across all 8 GPUs.

Inter-Node: InfiniBand and RoCE

For FSDP/ZeRO-3 AllGather and ReduceScatter operations across nodes, the inter-node network dominates.

Technology	Bandwidth	Latency	Notes
InfiniBand NDR	400 Gb/s (50 GB/s)	1–2 $\mu$ s	Gold standard, RDMA, lossless
InfiniBand NDR (dual-rail)	800 Gb/s (100 GB/s)	1–2 $\mu$ s	Used in H100 clusters
RoCE v2	100–400 Gb/s	2–5 $\mu$ s	Cheaper, needs PFC/ECN tuning
Ethernet (TCP)	100–400 Gb/s	10–50 $\mu$ s	Not suitable for $>$ 16 GPU training

Table 11.6:Inter-node networking options for LLM training clusters

Communication Primitives and Their Costs

Understanding when each collective is used helps diagnose bottlenecks:

Collective	Data Moved	Used By	When
AllReduce	$2\cdot\frac{N-1}{N}\cdot M$	TP, DP	Sum gradients or activations across GPUs
AllGather	$\frac{N-1}{N}\cdot M$	FSDP forward	Reconstruct full parameter tensor before matmul
ReduceScatter	$\frac{N-1}{N}\cdot M$	FSDP backward	Distribute gradient shards after backprop
Broadcast	$M$	PP	Send activations to next pipeline stage
Send/Recv	$M$	PP	Point-to-point between adjacent stages

Table 11.7:NCCL collective operations in distributed LLM training

where $M$ is the message size (bytes) and $N$ is the number of participants.

Network Topology Design

Production clusters use fat-tree or rail-optimized topologies:

Fat-tree: Full bisection bandwidth at every level. Any node can communicate with any other at full speed. Expensive (many switches) but maximally flexible.
Rail-optimized: GPU $i$ on every node connects to the same leaf switch (“rail $i$ ”). AllReduce within a rail is cheap; cross-rail traffic is expensive. Used by Meta’s RSC and Google’s TPU pods.
3D torus / Dragonfly: Used in HPC clusters (Frontier, Aurora). Topology-aware job placement is critical.

Training Throughput and Model FLOPs Utilization

Measuring Training Efficiency: MFU

Model FLOPs Utilization (MFU)[55] is the standard metric for training efficiency:

\text{MFU}=\frac{\text{Observed throughput (tokens/sec)}\times\text{FLOPs per token}}{\text{Peak hardware FLOPS}}

(11.5)

For a transformer with $P$ parameters, $s$ sequence length, and $b$ batch size:

\text{FLOPs per token}\approx 6P+12\cdot n_{\text{layers}}\cdot d_{\text{model}}\cdot s

(11.6)

The factor of 6 comes from: 2 (multiply-add) $\times$ 3 (forward + backward, where backward $\approx 2\times$ forward). The second term accounts for attention’s $O(s^{2})$ cost.

Model	Hardware	MFU	Tokens/sec/GPU	Configuration
LLaMA-7B	8 $\times$ A100	57%	3,200	FSDP, FlashAttn, BF16
LLaMA-13B	16 $\times$ A100	52%	1,750	FSDP, FlashAttn, BF16
LLaMA-70B	64 $\times$ A100	45%	380	FSDP+TP=8, FlashAttn
GPT-4 (est.)	10,000+ H100	40–50%	—	3D parallelism
PaLM-540B	6144 TPUv4	46%	—	DP+TP+PP

Table 11.8:MFU benchmarks across scales and hardware

Compute-Optimal Batch Sizing

The effective batch size interacts with hardware utilization in non-obvious ways:

\text{Effective batch size}=\text{micro\_batch}\times\text{grad\_accum}\times\text{DP degree}

(11.7)

Too small: GPU underutilized (low arithmetic intensity), communication dominates.
Too large: Diminishing learning per token (critical batch size exceeded), wastes compute.
Sweet spot: The critical batch size $B_{\text{crit}}$ where gradient noise equals gradient signal. For LLMs, $B_{\text{crit}}\sim 1$ – $4$ M tokens [250].

For RLHF specifically, the batch contains rollouts (not just tokens):

\text{RLHF batch}=N_{\text{prompts}}\times K_{\text{generations}}\times L_{\text{avg response length}}

(11.8)

Typical production values: $N=128$ prompts, $K=1$ – $4$ generations, $L=256$ – $512$ tokens $\rightarrow$ 32K–256K tokens per step.

Profiling and Bottleneck Diagnosis

Key profiling tools and what they reveal:

ToolCapturesBest Fortorch.profilerKernel timing, memoryFinding slow ops, memory leaksNVIDIA Nsight SystemsFull GPU timelineVisualizing overlap, gaps between kernelsnccl_debug=INFOCollective sizes/timesDiagnosing communication bottleneckstorch.cuda.memory_statsAllocation patternsFinding fragmentation, peak usageDeepSpeed Flops ProfilerPer-layer FLOPsIdentifying load imbalancepy-spy / scaleneCPU profilingData loading, tokenization bottlenecks

Cost Analysis and Cloud Deployment

Understanding the economics of RLHF training is essential for planning.

Hardware Cost Comparison

GPU	On-Demand/hr	Spot/hr	Memory	Use Case
A100 80GB	$2.50–3.50	$1.00–1.50	80 GB HBM2e	Budget training, gen cluster
H100 80GB	$4.00–6.00	$2.00–3.00	80 GB HBM3	Production training
H200 141GB	$6.00–8.00	—	141 GB HBM3e	Large context, fewer-GPU configs
MI300X 192GB	$3.50–5.00	$1.50–2.50	192 GB HBM3	Cost-effective alternative

Table 11.9:Approximate cloud GPU costs for RLHF training (2024–2025 pricing)

RLHF Training Cost Estimation

\text{Cost}=\frac{N_{\text{steps}}\times T_{\text{step}}}{3600}\times N_{\text{GPUs}}\times C_{\text{GPU/hr}}

(11.9)

Cost Optimization Strategies

Spot/preemptible instances: 50–70% savings. Requires robust checkpointing (save every 5 minutes).
Right-sizing: Don’t use H100 for generation (memory-bound); A100 achieves similar tokens/$ for inference.
Quantized inference: INT8/FP8 for generation and scoring halves GPU count for those clusters.
Progressive training: Start with 8B proxy model for reward engineering/debugging ( $\sim$ $200), then scale to 70B.
LoRA for reference-free: Eliminates reference model entirely (50% memory reduction).
Shorter sequences first: Curriculum from 256 $\rightarrow$ 512 $\rightarrow$ 1024 token generations saves 40% compute.

Distributed Checkpointing

At scale, naive checkpointing becomes a bottleneck. A 70B model with optimizer state requires saving $\sim$ 840 GB per checkpoint (FP32 master weights + Adam m + v).

Checkpointing Strategies

Strategy	Save Time (70B)	Storage/ckpt	Characteristics
Synchronous (all ranks)	30–60s (blocking)	420 GB	Simple, stalls training
Async (background copy)	$<$ 1s (non-blocking)	420 GB	Overlaps with next step
Incremental (delta)	$<$ 1s	5–20 GB	Only save changed params
Sharded (FSDP native)	5–10s	420 GB sharded	Each rank saves its shard

Table 11.10:Checkpointing approaches for large-scale RLHF

Production Checkpointing with torch.distributed.checkpoint

import torch.distributed.checkpoint as dcp
from torch.distributed.checkpoint.state_dict import get_state_dict, StateDictOptions

# Save: each rank writes its shard in parallel
state_dict = {"model": get_state_dict(model, options=StateDictOptions(full_state_dict=False))}
dcp.save(
    state_dict=state_dict,
    storage_writer=dcp.FileSystemWriter("/mnt/checkpoints/step_5000"),
    planner=dcp.DefaultSavePlanner(),  # Handles FSDP sharding automatically
)

# Async save: non-blocking, runs in background thread
future = dcp.async_save(
    state_dict=state_dict,
    storage_writer=dcp.FileSystemWriter("/mnt/checkpoints/step_5000"),
)
# Training continues immediately; future.result() blocks only if needed

Hardware Selection Guide

Choosing the right hardware depends on model size, budget, and training phase.

Model Size	Training Phase	Recommended	Configuration
$\leq$ 7B	SFT + RLHF	1–2 $\times$ A100	Single node, no parallelism needed
7–13B	SFT + RLHF	4–8 $\times$ A100	FSDP, optional TP=2 for gen
13–34B	SFT + RLHF	8–16 $\times$ A100/H100	FSDP + TP=4 for gen
70B	RLHF (full)	32–64 $\times$ A100/H100	Decoupled, FSDP + TP=8
70B	RLHF (LoRA)	8–16 $\times$ A100/H100	No ref model, LoRA adapters
$>$ 100B	RLHF	128+ $\times$ H100	3D parallelism (TP+PP+DP)

Table 11.11:Hardware recommendations by model scale and training phase

Optimizer Configuration for RL Training

RL training (PPO, GRPO, DPO) imposes unique demands on the optimizer compared to pretraining or SFT. The loss landscape is non-stationary (the policy changes what data is generated), gradients are noisier (reward signal variance), and training is more prone to catastrophic forgetting or reward hacking. This section consolidates RL-specific optimizer guidance, using AdamW [239] as the default optimizer.

Why RL Requires Different Optimizer Settings

Recommended Hyperparameters by RL Method

Method	Optimizer	LR	Warmup	Schedule
DPO	AdamW	$5\text{e-}7$	50 steps	Constant or Linear
PPO (policy)	AdamW	$1\text{e-}6$	20 steps	Constant
PPO (critic)	AdamW	$1\text{e-}6$	20 steps	Constant
GRPO	AdamW	$1\text{e-}6$	20 steps	Constant

Table 11.12:Optimizer settings for RL training phases. All use $\beta_{1}=0.9$ , $\beta_{2}=0.95$ , $\epsilon=10^{-8}$ , max_grad_norm=1.0, BF16.

Beta-2 = 0.95 for RL: Faster Adaptation

The default Adam $\beta_{2}=0.999$ gives a very long memory for the second moment ( $\sim$ 1000-step effective window). In RL training, the loss landscape changes rapidly as the policy evolves—the gradient variance from 1000 steps ago is irrelevant. Using $\beta_{2}=0.95$ shortens the window to $\sim$ 20 steps, making the adaptive learning rate respond quickly to changing gradient statistics.

Mixed Precision for RL: FP32 Master Weights Are Critical

RL training is particularly sensitive to numerical precision:

Gradients are noisier—small updates must accumulate accurately over many steps
Learning rates are very small ( $10^{-6}$ – $10^{-7}$ ), making $\Delta\theta\ll\theta$
BF16 mantissa (7 bits $\approx$ 0.8% relative precision) cannot represent updates of magnitude $10^{-6}$ relative to weights of magnitude $10^{0}$

Always use FP32 master weights for RL training. BF16-only training (no FP32 copy) reliably causes reward collapse in PPO/GRPO after 100–500 steps.

Gradient Clipping is Critical for RL

In PPO and GRPO, the reward signal can be highly variable, especially early in training. A single bad batch can produce gradients with norm $>100$ , which would completely destroy the model weights. max_grad_norm=1.0 is the standard setting. For SFT, clipping is less critical but still recommended.

Diagnosing RL Training Instability

HuggingFace TRL Configuration for RL

The TRL library [376] provides production-ready implementations of PPO, DPO, and other RL methods for LLMs.

from trl import PPOConfig, PPOTrainer, DPOConfig, DPOTrainer

# --- PPO Configuration ---
ppo_config = PPOConfig(
    # Optimizer (AdamW with RL-specific settings)
    learning_rate=1e-6,           # 10-100x smaller than SFT

    # PPO-specific
    ppo_epochs=4,                 # mini-batch updates per rollout
    mini_batch_size=16,
    batch_size=64,                # rollout batch size

    # Gradient control
    max_grad_norm=1.0,

    # KL penalty (replaces weight decay as regularizer)
    init_kl_coef=0.2,            # initial KL penalty coefficient
    adap_kl_ctrl=True,           # adaptive KL targeting
    target_kl=6.0,               # target KL divergence

    # Mixed precision
    bf16=True,                   # BF16 compute, FP32 master weights
)

ppo_trainer = PPOTrainer(
    model=model,
    ref_model=ref_model,
    config=ppo_config,
    tokenizer=tokenizer,
    dataset=dataset,
)

# --- DPO Configuration ---
dpo_config = DPOConfig(
    output_dir="./dpo_output",

    # Optimizer
    learning_rate=5e-7,           # even smaller than PPO
    optim="adamw_torch",
    adam_beta1=0.9,
    adam_beta2=0.95,              # shorter memory for RL
    weight_decay=0.0,            # no WD -- KL provides regularization

    # Schedule
    lr_scheduler_type="constant_with_warmup",
    warmup_steps=50,

    # Gradient control
    max_grad_norm=1.0,

    # DPO-specific
    beta=0.1,                    # KL constraint strength
    loss_type="sigmoid",         # standard DPO loss

    # Mixed precision
    bf16=True,

    # Training
    num_train_epochs=1,          # DPO typically 1 epoch
    per_device_train_batch_size=4,
    gradient_accumulation_steps=8,
)

dpo_trainer = DPOTrainer(
    model=model,
    ref_model=ref_model,
    args=dpo_config,
    train_dataset=dataset,
    tokenizer=tokenizer,
)
dpo_trainer.train()

Listing 6:Complete PPO and DPO optimizer configuration using TRL.

MoE Considerations for RL Training

Miles [295] is PyTorch’s official stack for large-scale LLM RL, connecting SGLang (for high-throughput rollout generation) with Megatron-LM (for distributed training updates). It supports both disaggregated execution (separate GPU pools for rollout and training, maximizing utilization) and colocated execution (fitting both on the same nodes for smaller-scale experiments). Miles represents the standardization of what was previously ad-hoc infrastructure—analogous to how PyTorch itself standardized deep learning training a decade ago.
