Chapter 24 Agent-to-Agent Communication (A2A)

# Client registers a push notification endpoint when submitting the task
task_request = {
    "id": "task-xyz789",
    "message": {
        "role": "user",
        "parts": [{"type": "text", "text": "Analyze Q3 sales data and produce a report."}]
    },
    "pushNotification": {
        "url": "https://my-orchestrator.example.com/webhooks/a2a",
        "token": "secret-hmac-token-for-verification",
        "authentication": {
            "schemes": ["Bearer"],
            "credentials": "eyJhbGciOiJIUzI1NiJ9..."
        }
    }
}
# The server will POST TaskStatusUpdateEvent objects to the webhook URL
# as the task transitions through states.

# Multi-turn: orchestrator handles input-required state
async def run_multiturn_task(client, initial_message):
    task = await client.send_task(message=initial_message)

    while task.status.state not in ("completed", "failed", "canceled"):
        if task.status.state == "input-required":
            # Agent needs clarification
            clarification_needed = task.status.message
            print(f"Agent asks: {clarification_needed}")

            # Orchestrator generates or forwards a clarifying response
            user_reply = await get_clarification(clarification_needed)

            # Send the reply to continue the task
            task = await client.send_task(
                task_id=task.id,
                message={"role": "user",
                         "parts": [{"type": "text", "text": user_reply}]}
            )
        else:
            # Still working --- poll after a delay
            await asyncio.sleep(2)
            task = await client.get_task(task.id)

    return task

class AgentRouter:
    """Routes tasks to agents based on capability matching."""

    def __init__(self, registry_url: str):
        self.registry_url = registry_url
        self._cache: dict[str, list[AgentCard]] = {}

    async def find_agents(self, required_skill: str,
                          tags: list[str] | None = None) -> list[AgentCard]:
        """Query registry for agents with the required skill."""
        params = {"skill": required_skill}
        if tags:
            params["tags"] = ",".join(tags)
        async with httpx.AsyncClient() as client:
            resp = await client.get(f"{self.registry_url}/agents", params=params)
            return [AgentCard(**card) for card in resp.json()["agents"]]

    async def route(self, task_description: str) -> AgentCard:
        """Semantically match a task description to the best available agent."""
        # Embed the task description
        task_embedding = await embed(task_description)

        # Fetch all registered agents
        all_agents = await self.find_agents(required_skill="*")

        # Score each agent by cosine similarity of task to agent description
        scored = []
        for agent in all_agents:
            agent_embedding = await embed(agent.description)
            score = cosine_similarity(task_embedding, agent_embedding)
            scored.append((score, agent))

        # Return the highest-scoring agent
        scored.sort(key=lambda x: x[0], reverse=True)
        return scored[0][1]

import uuid

class WorkflowContext:
    """Carries correlation metadata through a multi-agent workflow."""

    def __init__(self, workflow_id: str | None = None):
        self.workflow_id = workflow_id or str(uuid.uuid4())
        self.span_id = str(uuid.uuid4())
        self.parent_span_id: str | None = None

    def child_context(self) -> "WorkflowContext":
        """Create a child context for a sub-task."""
        child = WorkflowContext(workflow_id=self.workflow_id)
        child.parent_span_id = self.span_id
        return child

    def to_metadata(self) -> dict:
        return {
            "x-workflow-id": self.workflow_id,
            "x-span-id": self.span_id,
            "x-parent-span-id": self.parent_span_id
        }

# Usage: attach to every A2A task submission
ctx = WorkflowContext()
task = await client.send_task(
    message=message,
    metadata=ctx.to_metadata()
)
# Sub-tasks use child contexts for tracing
sub_ctx = ctx.child_context()

async def quorum_vote(agents: list[AgentCard], question: str,
                      options: list[str], quorum: int) -> str | None:
    """Run a quorum vote across agents. Returns winning option or None."""
    votes = await asyncio.gather(*[
        ask_agent_to_vote(agent, question, options)
        for agent in agents
    ])

    counts: dict[str, int] = {}
    for vote in votes:
        if vote in options:
            counts[vote] = counts.get(vote, 0) + 1

    # Return first option that reaches quorum
    for option, count in sorted(counts.items(), key=lambda x: -x[1]):
        if count >= quorum:
            return option
    return None  # No quorum reached

# Example OAuth 2.0 scopes for a DataAgent
SCOPES = {
    "data:read":        "Read data from connected databases",
    "data:write":       "Write or modify data in connected databases",
    "data:export":      "Export data to external systems",
    "analysis:run":     "Execute statistical analyses",
    "analysis:schedule":"Schedule recurring analyses",
    "admin:config":     "Modify agent configuration"
}

# A ReportingAgent might hold only: data:read, analysis:run
# An ETL pipeline agent might hold: data:read, data:write, data:export
# Only a human admin holds: admin:config

class A2AServer:
    def verify_authorization(self, token: str, required_scope: str) -> bool:
        """Verify that the calling agent holds the required scope."""
        claims = jwt.decode(token, self.public_key, algorithms=["RS256"])
        granted_scopes = claims.get("scope", "").split()
        if required_scope not in granted_scopes:
            raise PermissionError(
                f"Caller lacks required scope '{required_scope}'. "
                f"Granted: {granted_scopes}"
            )
        return True

@dataclass
class A2AAuditEvent:
    timestamp: str          # ISO 8601
    workflow_id: str        # Correlation ID for the top-level workflow
    span_id: str            # This task's span
    parent_span_id: str     # Calling task's span (for delegation chains)
    caller_agent_id: str    # Verified identity of the calling agent
    callee_agent_id: str    # This agent's identity
    task_id: str
    skill_invoked: str
    authorization_scopes: list[str]
    outcome: str            # "completed" | "failed" | "rejected"
    duration_ms: int
    error_code: str | None

"""
Multi-agent research workflow using A2A protocol.
Demonstrates: Agent Cards, A2A client/server, task lifecycle,
multi-turn interaction, and agent handoffs.
"""

import asyncio
import json
import uuid
from collections.abc import AsyncIterator
from datetime import datetime, timedelta, timezone

import httpx
from fastapi import FastAPI, HTTPException, Request
from fastapi.responses import StreamingResponse
from pydantic import BaseModel, Field

# -- Data Models --------------------------------------------------------------

class Part(BaseModel):
    type: str           # "text" | "file" | "data"
    text: str | None = None
    data: dict | None = None
    mimeType: str | None = None
    uri: str | None = None

class Message(BaseModel):
    role: str           # "user" | "agent"
    parts: list[Part]

class TaskStatus(BaseModel):
    state: str          # submitted | working | input-required | completed | failed
    message: str | None = None
    timestamp: str = Field(
        default_factory=lambda: datetime.now(timezone.utc).isoformat()
    )

class Artifact(BaseModel):
    parts: list[Part]
    index: int = 0
    append: bool = False
    lastChunk: bool = True

class Task(BaseModel):
    id: str
    status: TaskStatus
    messages: list[Message] = []
    artifacts: list[Artifact] = []
    metadata: dict = {}

# -- A2A Client (HTTP/REST binding) --------------------------------------------
# Note: A2A v1.0 defines three protocol bindings: JSON-RPC 2.0, gRPC, and
# HTTP+JSON/REST. This example uses the REST binding for readability.

class A2AClient:
    """Client for sending tasks to A2A-compliant agents."""

    def __init__(self, agent_url: str, auth_token: str):
        self.agent_url = agent_url.rstrip("/")
        self.headers = {
            "Authorization": f"Bearer {auth_token}",
            "Content-Type": "application/json"
        }

    async def get_agent_card(self) -> dict:
        """Fetch the agent's capability card."""
        async with httpx.AsyncClient() as client:
            resp = await client.get(
                f"{self.agent_url}/.well-known/agent.json",
                headers=self.headers
            )
            resp.raise_for_status()
            return resp.json()

    async def send_task(self, message: Message,
                        task_id: str | None = None,
                        metadata: dict | None = None) -> Task:
        """Submit a task and return the initial task object."""
        payload = {
            "id": task_id or str(uuid.uuid4()),
            "message": message.model_dump(),
            "metadata": metadata or {}
        }
        async with httpx.AsyncClient() as client:
            resp = await client.post(
                f"{self.agent_url}/tasks/send",
                json=payload,
                headers=self.headers,
                timeout=30.0
            )
            resp.raise_for_status()
            return Task(**resp.json())

    async def stream_task(self, message: Message,
                          metadata: dict | None = None) -> AsyncIterator[dict]:
        """Submit a task and stream SSE events."""
        payload = {
            "id": str(uuid.uuid4()),
            "message": message.model_dump(),
            "metadata": metadata or {}
        }
        async with httpx.AsyncClient() as client:
            async with client.stream(
                "POST",
                f"{self.agent_url}/tasks/sendSubscribe",
                json=payload,
                headers={**self.headers, "Accept": "text/event-stream"},
                timeout=300.0
            ) as response:
                async for line in response.aiter_lines():
                    if line.startswith("data: "):
                        event_data = json.loads(line[6:])
                        yield event_data
                        if event_data.get("final"):
                            break

    async def get_task(self, task_id: str) -> Task:
        """Poll for task status."""
        async with httpx.AsyncClient() as client:
            resp = await client.get(
                f"{self.agent_url}/tasks/{task_id}",
                headers=self.headers
            )
            resp.raise_for_status()
            return Task(**resp.json())

    async def wait_for_completion(self, task: Task,
                                  poll_interval: float = 2.0) -> Task:
        """Poll until task reaches a terminal state."""
        terminal_states = {"completed", "failed", "canceled"}
        while task.status.state not in terminal_states:
            await asyncio.sleep(poll_interval)
            task = await self.get_task(task.id)
        return task

# -- A2A Server (FastAPI) -----------------------------------------------------

class ResearchAgent:
    """
    A specialist research agent that searches literature and
    summarizes findings on a given topic.
    """

    AGENT_CARD = {
        "name": "ResearchAgent",
        "description": "Searches academic literature and synthesizes research findings.",
        "url": "https://research-agent.example.com/a2a",
        "version": "1.0.0",
        "capabilities": {
            "streaming": True,
            "pushNotifications": False,
            "stateTransitionHistory": True
        },
        "authentication": {"schemes": ["Bearer"]},
        "skills": [{
            "id": "literature-search",
            "name": "Literature Search",
            "description": "Search and summarize academic papers on a topic.",
            "tags": ["research", "literature", "academic", "papers"],
            "examples": [
                "Summarize recent papers on transformer attention mechanisms.",
                "What does the literature say about RLHF for code generation?"
            ],
            "inputModes": ["text"],
            "outputModes": ["text", "data"]
        }]
    }

    def __init__(self):
        self.tasks: dict[str, Task] = {}
        self.app = FastAPI(title="ResearchAgent A2A Server")
        self._register_routes()

    def _register_routes(self):
        @self.app.get("/.well-known/agent.json")
        async def agent_card():
            return self.AGENT_CARD

        @self.app.post("/tasks/send")
        async def send_task(request: Request):
            body = await request.json()
            task = await self._create_and_run_task(body)
            return task.model_dump()

        @self.app.post("/tasks/sendSubscribe")
        async def send_subscribe(request: Request):
            body = await request.json()
            return StreamingResponse(
                self._stream_task(body),
                media_type="text/event-stream"
            )

        @self.app.get("/tasks/{task_id}")
        async def get_task(task_id: str):
            if task_id not in self.tasks:
                raise HTTPException(status_code=404, detail="Task not found")
            return self.tasks[task_id].model_dump()

    async def _create_and_run_task(self, body: dict) -> Task:
        task_id = body.get("id", str(uuid.uuid4()))
        message = Message(**body["message"])

        task = Task(
            id=task_id,
            status=TaskStatus(state="submitted"),
            messages=[message],
            metadata=body.get("metadata", {})
        )
        self.tasks[task_id] = task

        # Run asynchronously
        asyncio.create_task(self._execute_task(task_id))
        return task

    async def _execute_task(self, task_id: str):
        task = self.tasks[task_id]
        task.status = TaskStatus(state="working")

        try:
            # Extract the research question from the message
            question = task.messages[0].parts[0].text

            # Simulate literature search (replace with real search tool)
            await asyncio.sleep(1)  # Simulated latency
            findings = await self._search_literature(question)

            # Produce artifact
            task.artifacts = [Artifact(parts=[
                Part(type="text", text=findings["summary"]),
                Part(type="data", data={"papers": findings["papers"],
                                        "query": question})
            ])]
            task.status = TaskStatus(state="completed")

        except Exception as e:
            task.status = TaskStatus(state="failed", message=str(e))

        self.tasks[task_id] = task

    async def _search_literature(self, question: str) -> dict:
        """Placeholder: in production, calls a real search API."""
        return {
            "summary": f"Based on a search of recent literature regarding "
                       f"'{question}', key findings include: ...",
            "papers": [
                {"title": "Attention Is All You Need", "year": 2017,
                 "relevance": 0.95},
                {"title": "RLHF: Training Language Models to Follow Instructions",
                 "year": 2022, "relevance": 0.88}
            ]
        }

    async def _stream_task(self, body: dict) -> AsyncIterator[str]:
        task = await self._create_and_run_task(body)

        # Stream status updates
        yield f"data: {json.dumps({'id': task.id, 'status': {'state': 'submitted'}, 'final': False})}\n\n"
        yield f"data: {json.dumps({'id': task.id, 'status': {'state': 'working'}, 'final': False})}\n\n"

        # Wait for completion
        while task.status.state not in ("completed", "failed", "canceled"):
            await asyncio.sleep(0.5)
            task = self.tasks[task.id]

        # Stream the artifact
        if task.artifacts:
            for part in task.artifacts[0].parts:
                event = {
                    "id": task.id,
                    "artifact": {
                        "parts": [part.model_dump()],
                        "index": 0,
                        "append": False,
                        "lastChunk": True
                    },
                    "final": False
                }
                yield f"data: {json.dumps(event)}\n\n"

        # Final status
        yield f"data: {json.dumps({'id': task.id, 'status': task.status.model_dump(), 'final': True})}\n\n"

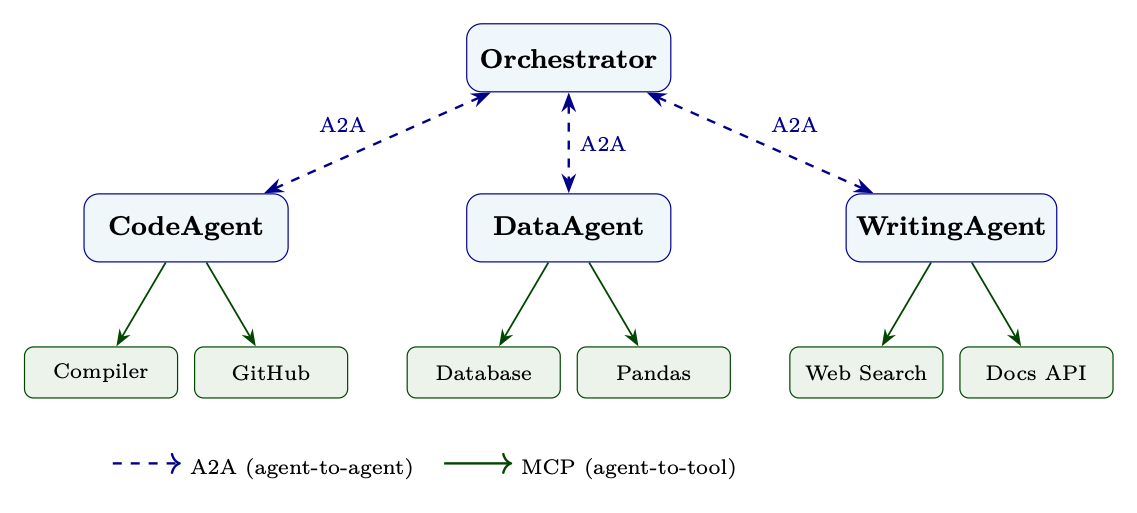

# -- Orchestrator: Multi-Agent Workflow ----------------------------------------

class ResearchOrchestrator:
    """
    Orchestrates a multi-agent research workflow:
    1. Decomposes the research question into sub-questions
    2. Dispatches each sub-question to a ResearchAgent
    3. Synthesizes results into a final report
    """

    def __init__(self, research_agent_url: str, auth_token: str):
        self.research_client = A2AClient(research_agent_url, auth_token)
        self.workflow_id = str(uuid.uuid4())

    async def run(self, research_question: str) -> str:
        print(f"[Orchestrator] Starting workflow {self.workflow_id}")
        print(f"[Orchestrator] Question: {research_question}")

        # Step 1: Decompose into sub-questions
        sub_questions = self._decompose(research_question)
        print(f"[Orchestrator] Decomposed into {len(sub_questions)} sub-questions")

        # Step 2: Dispatch sub-questions in parallel
        tasks = await asyncio.gather(*[
            self.research_client.send_task(
                message=Message(role="user", parts=[Part(type="text", text=q)]),
                metadata={"workflowId": self.workflow_id, "subQuestion": i}
            )
            for i, q in enumerate(sub_questions)
        ])

        # Step 3: Wait for all tasks to complete
        completed_tasks = await asyncio.gather(*[
            self.research_client.wait_for_completion(task)
            for task in tasks
        ])

        # Step 4: Check for failures
        failed = [t for t in completed_tasks if t.status.state == "failed"]
        if failed:
            print(f"[Orchestrator] Warning: {len(failed)} sub-tasks failed")

        # Step 5: Synthesize results
        findings = []
        for task, question in zip(completed_tasks, sub_questions):
            if task.status.state == "completed" and task.artifacts:
                summary = task.artifacts[0].parts[0].text
                findings.append(f"### {question}\n{summary}")

        report = self._synthesize(research_question, findings)
        print(f"[Orchestrator] Workflow complete. Report: {len(report)} chars")
        return report

    def _decompose(self, question: str) -> list[str]:
        """Decompose a complex question into focused sub-questions."""
        # In production: use an LLM to decompose
        return [
            f"What are the foundational methods for: {question}?",
            f"What are the most recent advances in: {question}?",
            f"What are the open challenges and limitations in: {question}?"
        ]

    def _synthesize(self, question: str, findings: list[str]) -> str:
        """Synthesize sub-findings into a coherent report."""
        # In production: use an LLM to synthesize
        sections = "\n\n".join(findings)
        return f"# Research Report: {question}\n\n{sections}"

# -- Entry Point ---------------------------------------------------------------

async def main():
    orchestrator = ResearchOrchestrator(
        research_agent_url="https://research-agent.example.com/a2a",
        auth_token="eyJhbGciOiJSUzI1NiJ9..."
    )
    report = await orchestrator.run(
        "Reinforcement learning from human feedback for large language models"
    )
    print(report)

if __name__ == "__main__":
    asyncio.run(main())
